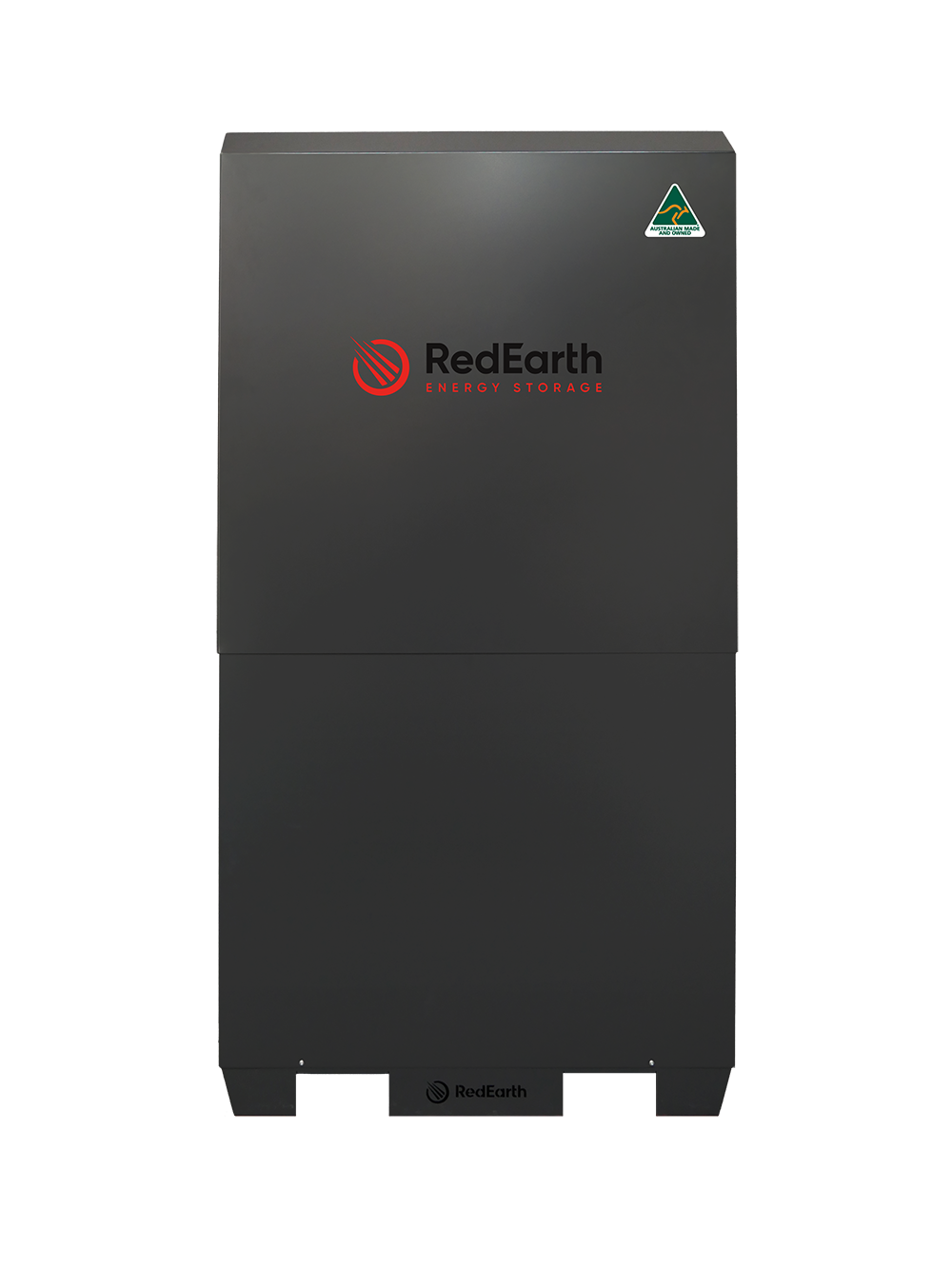

OUTDOOR-RATED SLIMLINE HOME BATTERY SYSTEM
Gecko
Slim system. Big power.

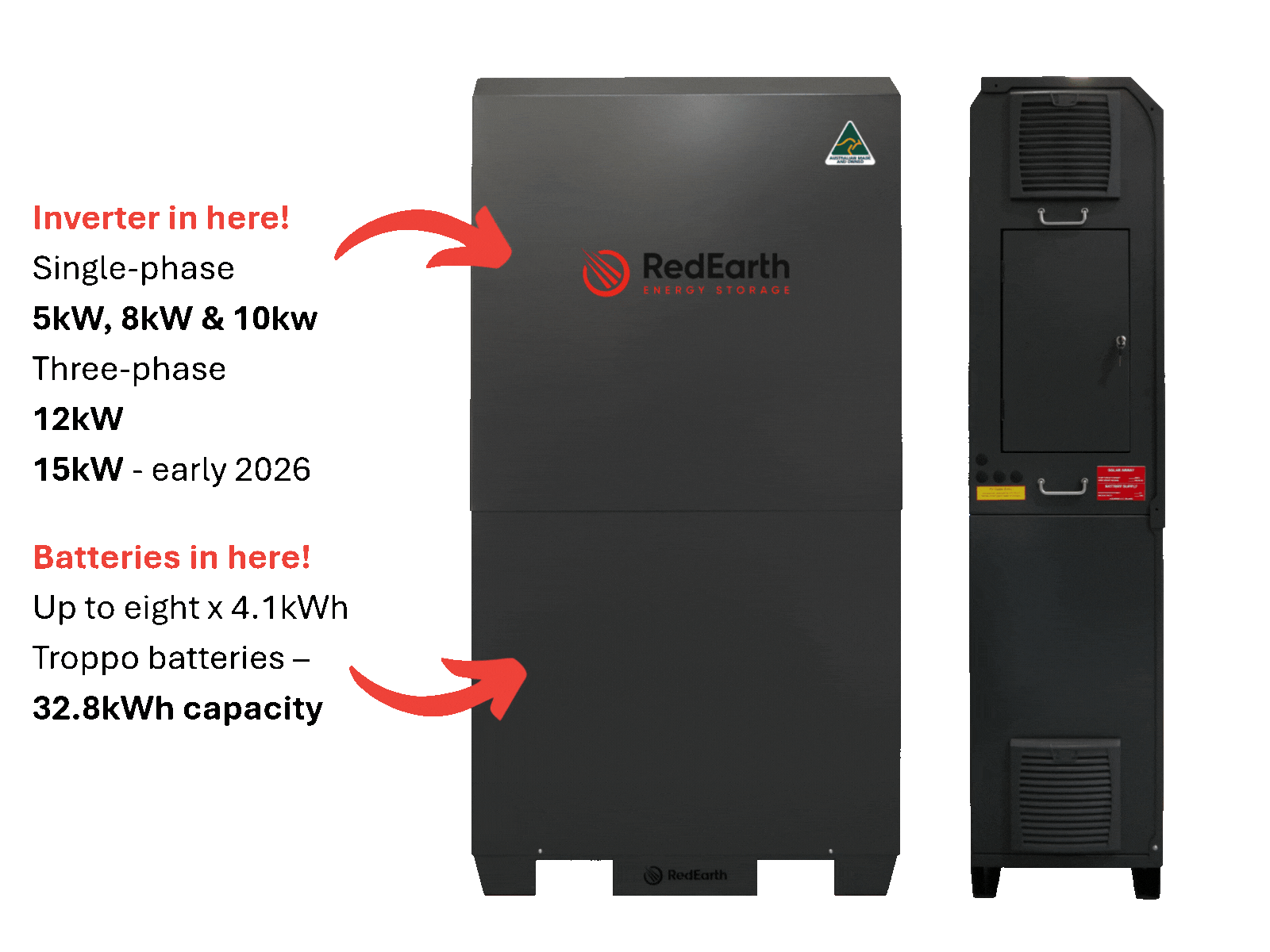

→ Available in both single-phase (10kW, 8kw & 5kw) and three-phase (12kW)
→ Suitable for on-grid and off-grid applications
EV charger and energy trading ready
→ Maximum capacity of 24.6kWh
→ Australian made and owned
Power your home holiday property small business
RedEarth’s Gecko system offers Australian-made scalability, in a slim package with RedEarth-certified inverter attached to the wall, making them an excellent and enduring investment for your home.
Available in both single and three-phase configurations, the Gecko provides a range of power outputs tailored to accommodate your specific needs. This versatility ensures effortless and effective power supply solutions for both residential and business applications.
Gecko is made of aluminium to last in Australia’s harsh environment. Like all of RedEarth’s products, Gecko is fully engineered, assembled, and tested to Australian standards at RedEarth’s factory in Brisbane.
→ Struggling to decide? We can help make your decision easy. Let’s compare RedEarth’s brand new Gecko with a standard battery energy storage system.
Meet the Gecko 🦎
- Australian made battery and battery enclosure
- Single phase (5kW, 8kW, 10kW) and three phase (12kW) options available
- Inverter is RedEarth certified and registered
- Slimline design, perfect for small spaces
- EV charging compatible
- Vehicle-to-grid compatible
- Includes Smart Port (on-grid) to help you use electricity more efficiently
- Private Power Plant ready: start energy trading and save money!
- Micro inverter capable—perfect for shaded roofs or retrofitting
- Scalable! Add more batteries as your needs change
- System health checks: Let us monitor your system for you
- Ongoing support. RedEarth is with you for the long haul
- Versatile power hub seamlessly integrates grid, generator, and load ports
- Authorised installers Australia-wide
- Did we mention CHEAPER?!
Other home battery systems🔋
- Internationally made
- More expensive
- Clunky design
- No energy trading options
- Not scalable
- Can't be retrofitted to existing solar systems
- Not EV charging compatible
- No Australian-based customer or tech support
- Not off-grid compatible
🔑 Unlock your own Private Power Plant
Meet our proprietary PPP app
All new systems will get three months free Optimum membership.
Gecko is Private Power Plant enabled, meaning you can use it to trade energy, access wholesale power prices, charge your EV remotely or even share your power with family and friends! Oh, and there’s also the Disaster Protection Mode, to help keep you powered up in blackouts and disasters—which is becoming crucial here in Australia.
Find our more about RedEarth’s Private Power Plant here.
Want us to take the reins? No worries.
You can sit back and relax! Our app’s proprietary smart algorithm can do the hard work for you, managing all aspects of your Private Power Plant, including energy trading.
Unlock your own Private Power Plant
Gecko is Private Power Plant enabled, meaning you can use it to trade energy, access wholesale power prices, charge your EV remotely or even share your power with family and friends! Oh, and there’s also the Disaster Protection Mode, to help keep you powered up in blackouts and disasters—which is becoming crucial here in Australia.
Find our more about RedEarth’s Private Power Plant here.

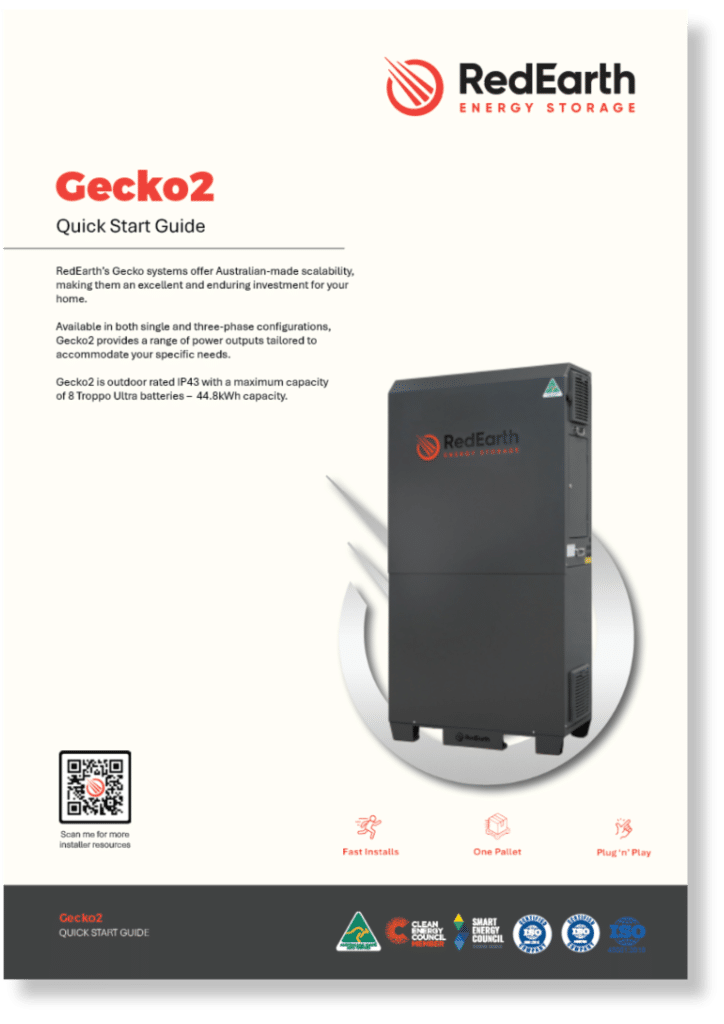

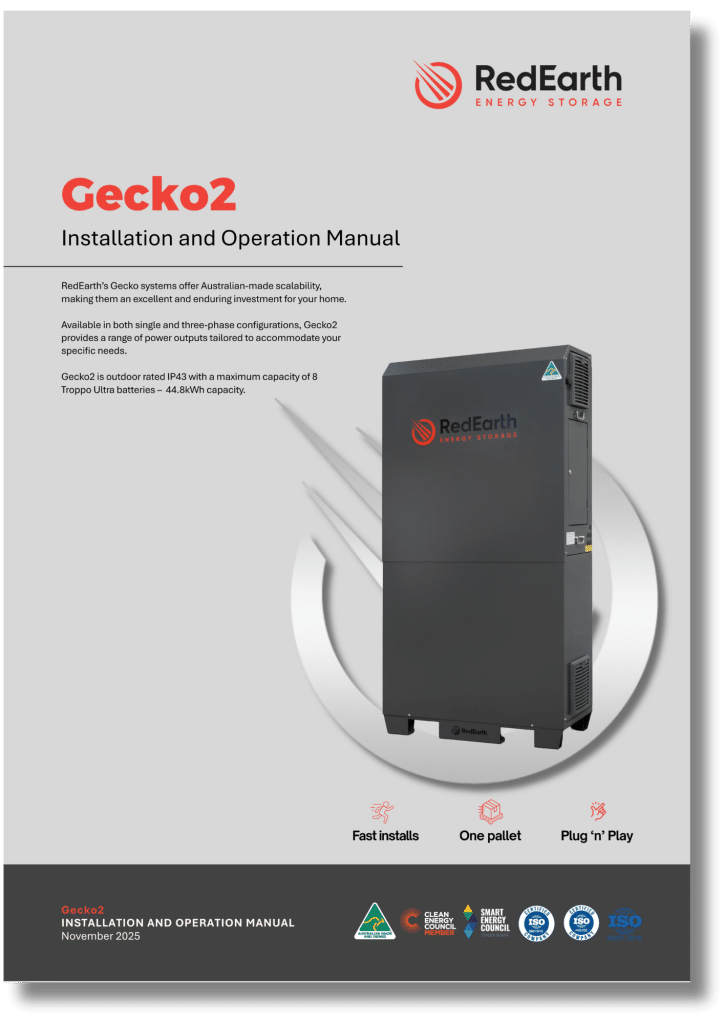

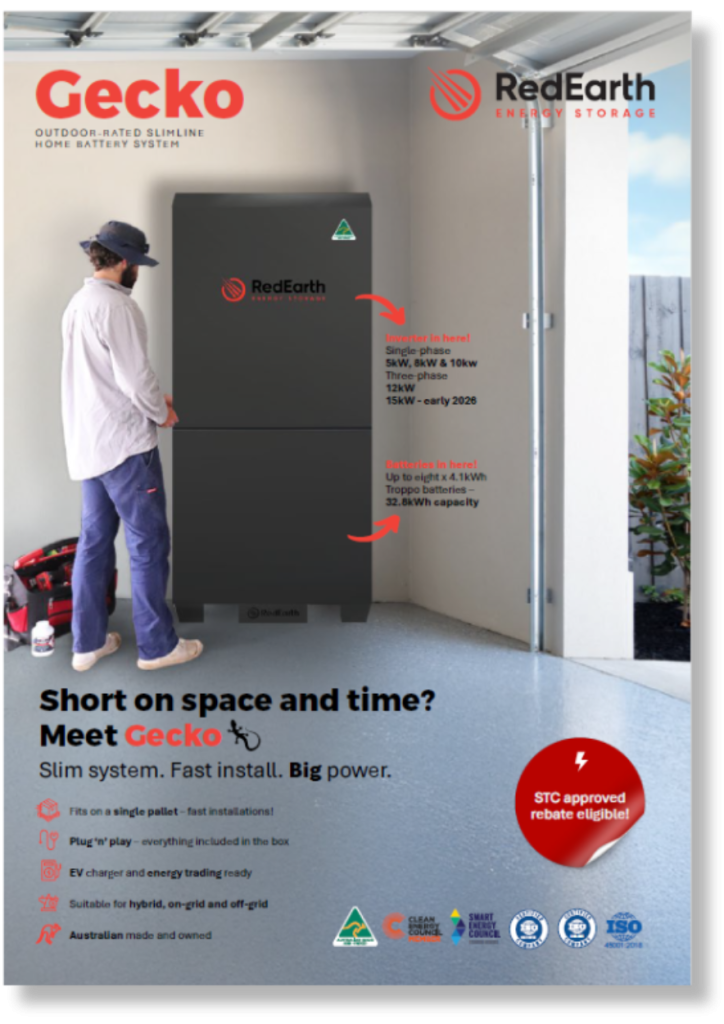

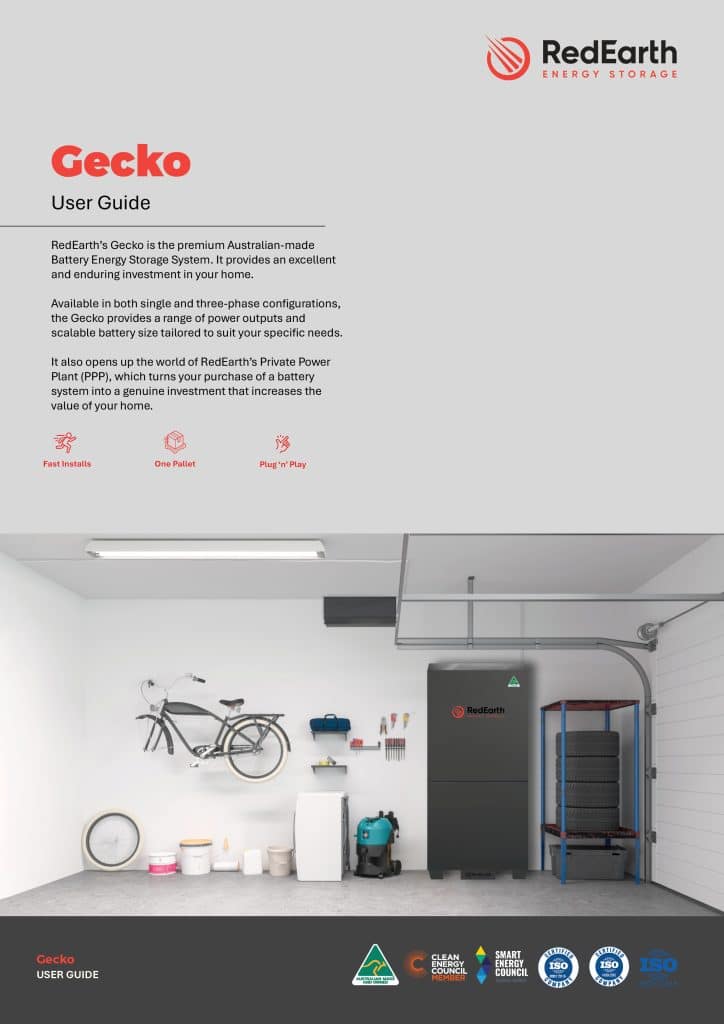

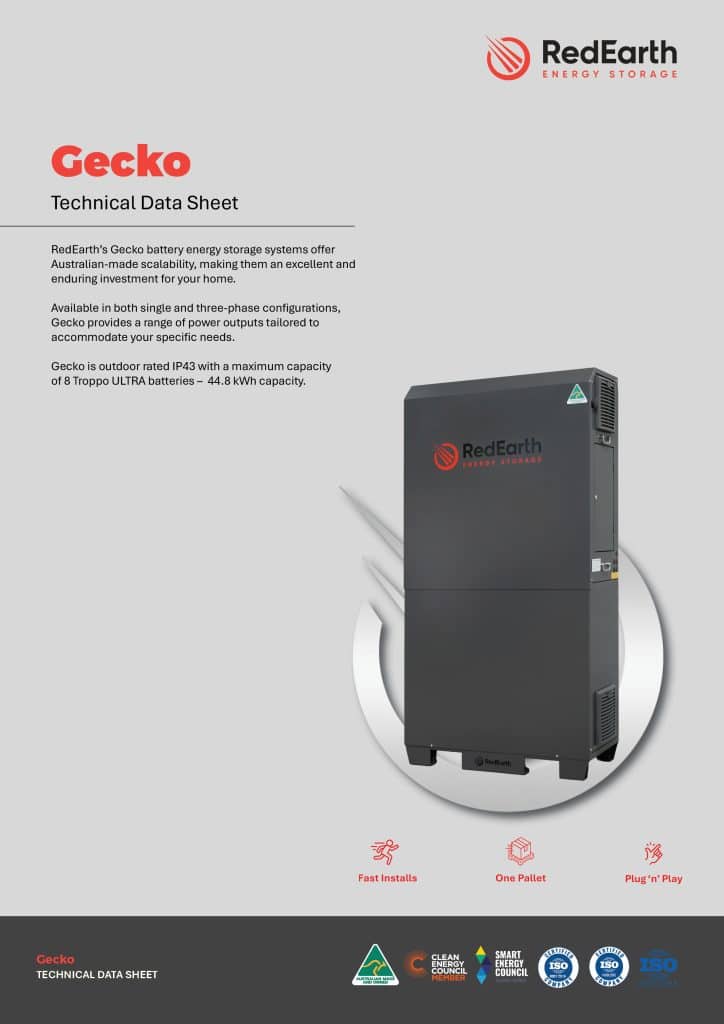

📥 Downloads
Why choose RedEarth?
AUSTRALIAN-MADE | ON-GRID | HYBRID | SCALABLE
Australian-made
Support local industries with high-quality, homegrown solutions, made right here in Brisbane.
Rebate Eligible!
Great news! All of RedEarth’s hybrid (both on and off grid compatible) systems align with the Battery Booster Program criteria
Scalable Solutions
Got an EV or added to your family? No worries. RedEarth’s systems are made to grow with your needs.
Energy Trading
Want to limit (or completely stop!) paying power bills? RedEarth offers our own proprietary Private Power Plant. Start earning and take your own power back!
Save the planet!
Stop using dirty, coal power and start using clean, green energy . And why not get paid for your service while you’re at it? It’s easy being green with RedEarth. Switch to renewable energy today.
Specifications

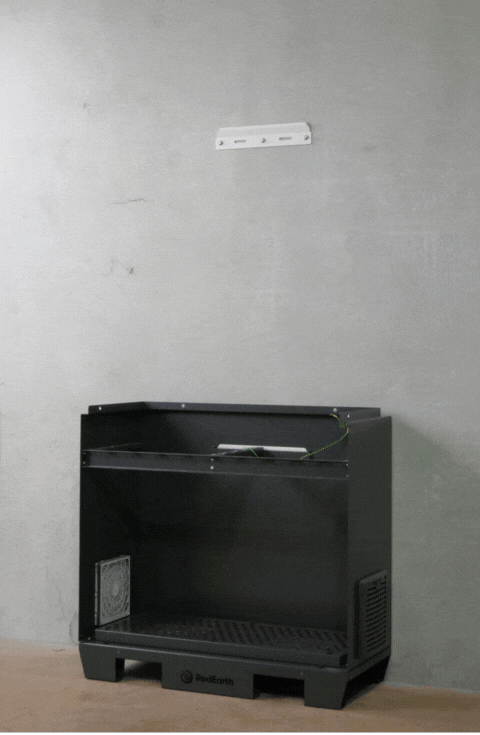

Outdoor-rated, easy-to-install and scalable, the Gecko system comes pre-wired and can be retrofitted to an existing solar system, making it the easiest slimline system for your home.
|
|
Single Phase
|
Three phase
|
|
Power output options
|
Max. AC output power of 5,000W or 8,000W or 10,000W
|
Max. AC output power of 12,000W
|
|
Solar input
|
Single phase: 5kW option – Connect up to 10kW of solar panels to the dual MPPTs. 8kW option – Connect up to 16kW of solar panels to the dual MPPTs. 10kW option – Connect up to 20kW of solar panels to the triple MPPTs (150-425Vdc max. 500Vdc)
|
12kW option: Connect up to 24kW of solar panels to the dual MPPTs (200-650dc max. 800Vdc)
|
|
Battery
|
From 2 to 6 x 4.1kWh Troppos (max. 24.6kWh) Voltage: 48Vdc (nom.) Minimum 2 for 5kW, minimum 3 for 8kW and minimum 4 for 10kW.
|
4 to 6 x 4.1kwh Troppos (Max 24.6kWh) Voltage: 48Vdc (nom.) Min 4 required for full inverter power rating.
|
|
Electrical connections
|
Grid connection, backup circuits connection and Smart Port connection (if used)
|
|
|
Monitoring
|
Monitoring hardware included and activated via RedEarth’s EMU app (subject to network availability and Optimum subscription).
|
|
|
Energy trading
|
On-grid only
|
|
|
EV charger
|
Yes – compatible
|
|
Specifications
Outdoor-rated, easy-to-install and scalable, the Gecko system comes pre-wired and can be retrofitted to an existing solar system, making it the easiest slimline system for your home.
|
Power output options
|
Single phase: Max. AC output power of 5,000W, 8,000W or 10,000W
|
Three phase: Max. AC output power of 12,000W
|
|
Solar input
|
Single phase: 5kW option – Connect up to 10kW of solar panels to the dual MPPTs. 8kW option – Connect up to 16kW of solar panels to the dual MPPTs. 10kW option – Connect up to 20kW of solar panels to the triple MPPTs (150-425Vdc max. 500Vdc)
|
Three phase: 12kW option - Connect up to 18kW of solar panels to the dual MPPTs (200-650dc max. 800Vdc)
|
|
Battery
|
Single phase: From 2 to 6 x 4.1kWh Troppos (max. 24.6kWh) Voltage: 48Vdc (nom.) Min 2 required for full inverter power rating. (Min 2 for 5kW, minimum 3 for 8kW)
|
Three phase: 4 to 6 x 4.1kwh Troppos (Max 24.6kWh) Voltage: 48Vdc (nom.) Min 4 required for full inverter power rating.
|
|
Electrical connections
|
Grid connection, backup circuits connection and Smart Port connection (if used)
|
|
|
Monitoring
|
Monitoring hardware included and activated via RedEarth’s EMU app (subject to network availability and Optimum subscription).
|
|
|
Energy trading
|
On-grid only
|
|
|
EV charger
|
Yes – compatible
|
|
