WHOLE HOME BACKUP POWER SOLUTION
BushChook
You worry about living, we'll worry about power.
→ Available in both single-phase (10kW, 8kw & 5kw) and three-phase (12kW)
→ Suitable for on-grid and off-grid applications
→ EV charger and energy trading ready
→ Maximum capacity of 32.8kWh
→ Australian made and owned

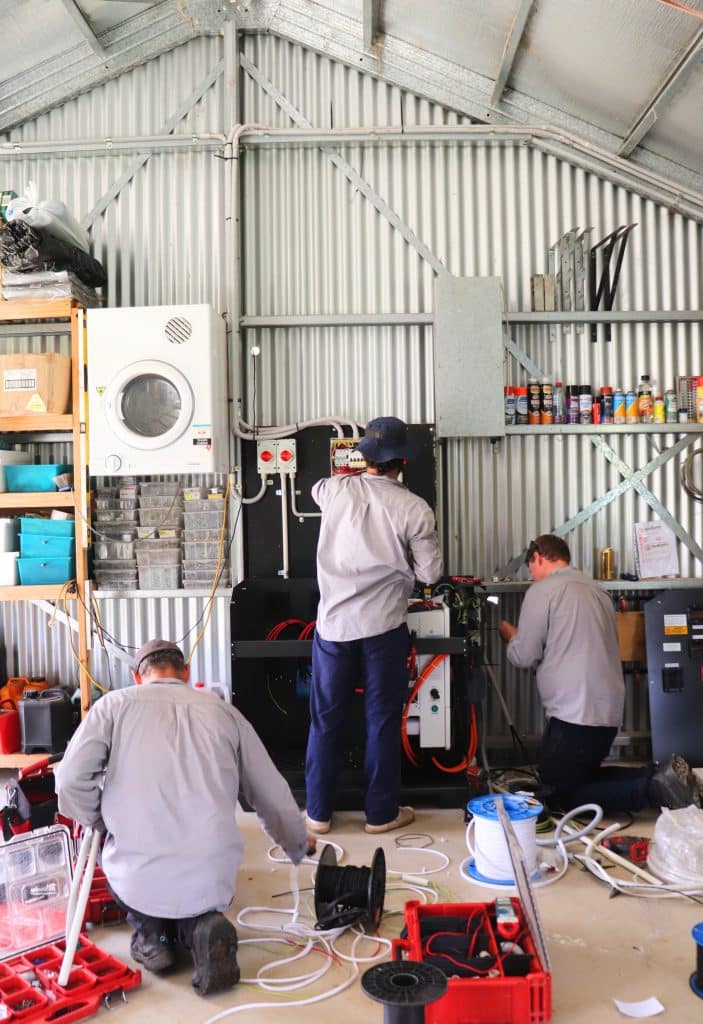

Simple installation
Simple installation
Next level features, including:
1. Versatile power hub
The BushChook seamlessly integrates grid, generator, and load ports achieving a truly unique level of flexibility.
2. Dynamic AC coupled solution
The BushChook partners effortlessly with micro-inverters and standard string PV inverters allowing you to power through a blackout.
3. Reliable back up generator support
No grid, no worries – in the face of grid outages, the BushChook can power up your backup generator to power loads and charge the battery.
4. Smart load management
No generator or AC-coupled solar? The generator port can be easily converted to a smart load port, providing intelligent load management, and ensuring your solar and battery is consumed as efficiently as possible.
4. Private Power Plant ready
The BushChook keeps your power in your hands with native support for RedEarth’s Private Power Plant
Next level features, including
1. Versatile power hub
The BushChook seamlessly integrates grid, generator, and load ports achieving a truly unique level of flexibility.
2. Dynamic AC coupled solution
The BushChook partners effortlessly with micro-inverters and standard string PV inverters allowing you to power through a blackout.
3. Reliable back up generator support
No grid, no worries – in the face of grid outages, the BushChook can power up your backup generator to power loads and charge the battery.
4. Smart load management
No generator or AC-coupled solar? The generator port can be easily converted to a smart load port, providing intelligent load management, and ensuring your solar and battery is consumed as efficiently as possible.
4. Private Power Plant ready
The BushChook keeps your power in your hands with native support for RedEarth’s Private Power Plant

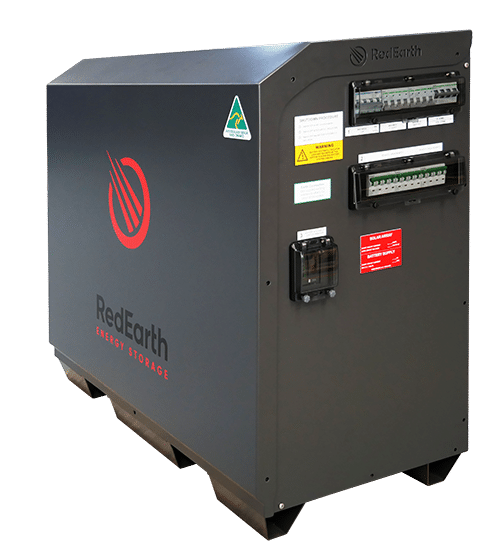

Get to know your system
Manufactured, built and tested in our factory in Brisbane, Australia and ready to ship! Enquire today

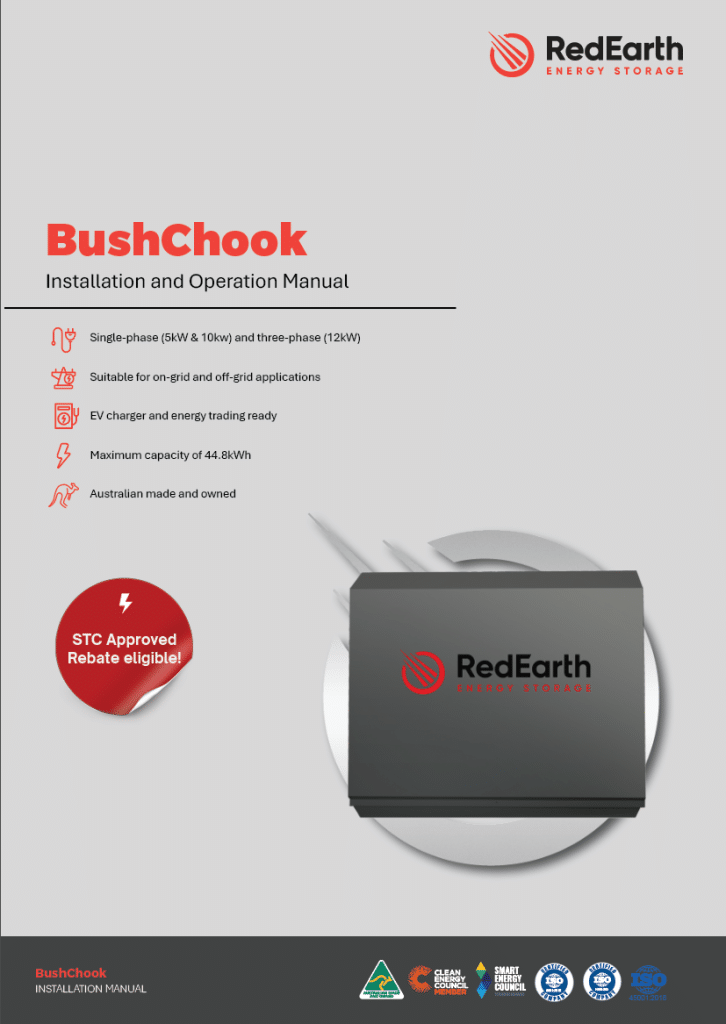

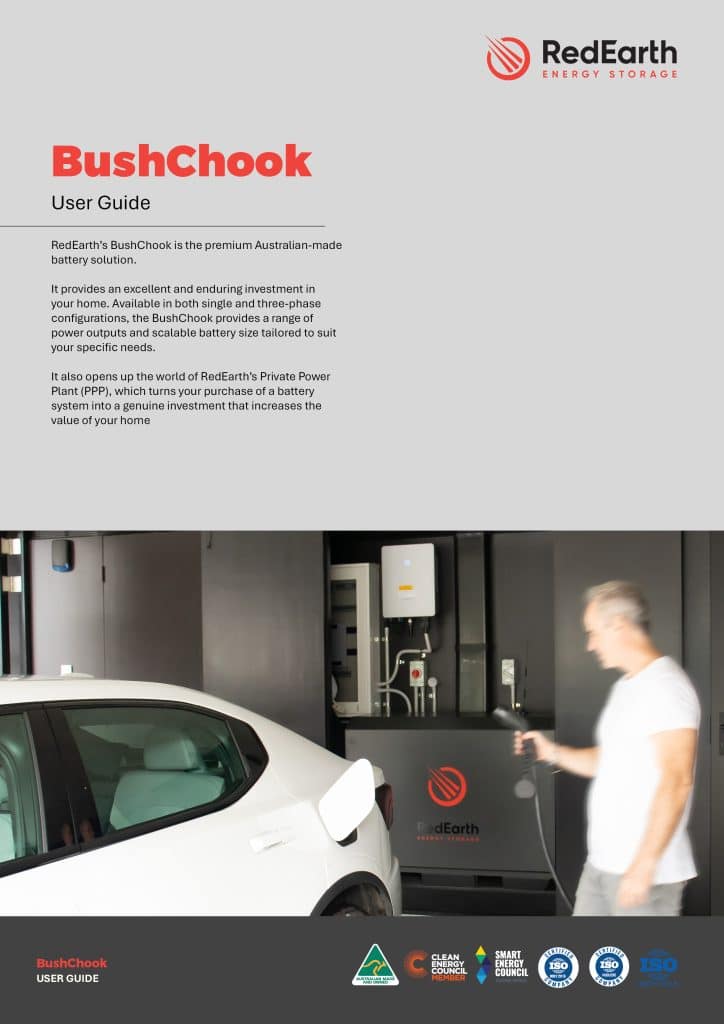

Downloads
Download our helpful BushChook resources to find out more.
Why choose a RedEarth system?
Australian-made
Support local industries with high-quality, homegrown solutions, made right here in Brisbane.
Easy to install
Want quick installs? No worries. With customers and end-users in mind, our systems have been developed for quick and easy installation and minimal onsite time and cost.
Low maintenance
We like to keep things simple, so our products are designed to be easy to install and set and forget.
Scalable Solutions
Got an EV or added to your family? No worries. RedEarth’s systems are made to grow with your needs.
Control your power
Want to limit (or completely stop!) paying power bills? With RedEarth you have access to our proprietary Private Power Plant. Start earning and take your own power back!
High Quality
All our products are designed, engineered, assembled, and tested at our factory in Brisbane. Our high-quality components are compliant to Australian Standards.
Support
Great news! Our systems can be remotely monitored from your mobile device – all you need is an internet connection. We also have an Aussie-based support team on call.
Warranty
RedEarth uses the highest quality components, and we stand by what we do. All our products have a comprehensive warranty of up to 10 years.
Large or small
Whether you want to power your off-grid tiny home or your large-scale commercial enterprise, RedEarth has the perfect solution for you.
Save the planet!
Stop using dirty, coal power and start using clean, green energy. And why not get paid for it? It’s easy being green with RedEarth. Switch to renewable energy today.
Why choose a RedEarth system?
Australian-made
Support local industries with high-quality, homegrown solutions, made right here in Brisbane.
Easy to install
Want quick installs? No worries. With customers and end-users in mind, our systems have been developed for quick and easy installation and minimal onsite time and cost.
Low maintenance
We like to keep things simple, so our products are designed to be easy to install and set and forget.
Scalable Solutions
Got an EV or added to your family? No worries. RedEarth’s systems are made to grow with your needs.
Control your power
Want to limit (or completely stop!) paying power bills? With RedEarth you have access to our proprietary Private Power Plant. Start earning and take your own power back!
High Quality
All our products are designed, engineered, assembled, and tested at our factory in Brisbane. Our high-quality components are compliant to Australian Standards.
Support
Great news! Our systems can be remotely monitored from your mobile device – all you need is an internet connection. We also have an Australian-based support team on call.
Warranty
RedEarth uses the highest quality components, and we stand by what we do. All our products have a comprehensive warranty of up to 10 years.
Large or small
Whether you want to power your off-grid tiny home or your large-scale commercial enterprise, RedEarth has the perfect solution for you.
Save the planet!
Stop using dirty, coal power and start using clean, green energy. And why not get paid for your service while you’re at it? It’s easy being green with RedEarth. Switch to renewable energy today.
Specifications
|
Power output options
|
Single phase: Max. AC output power of 5,000W, 8,000W or 10,000W
|
Three phase: Max. AC output power of 12,000W
|
|
Solar input
|
Single phase: 5kW option – Connect up to 10kW of solar panels to the dual MPPTs. 8kW option – Connect up to 16kW of solar panels to the dual MPPTs. 10kW option – Connect up to 20kW of solar panels to the triple MPPTs (150-425Vdc max. 500Vdc)
|
Three phase: 12kW option - Connect up to 24kW of solar panels to the dual MPPTs (200-650dc max. 800Vdc)
|
|
Battery
|
Single phase: From 2 to 8 x 4.1kWh Troppos (max. 32.8kWh). Voltage: 48Vdc (nom.) Minimum 2 required for full inverter power rating (Minimum 2 for 5kW, minimum 3 for 8kW and minimum 4 for 10kW).
|
Three phase: 4 to 8 x 4.1kwh Troppos (Max 32.8kWh) Voltage: 48Vdc (nom.) Min 5 required for full inverter power rating.
|
|
Electrical connections
|
Hard-wired via built-in EPS transfer switch PV cables connected directly to pre-installed MC4s. In-built support for controlling AC coupled micro inverters and solar systems, generators or smart loads via hard wired terminal block.
|
|
|
Monitoring
|
Monitoring hardware included and activated via RedEarth’s EMU app (subject to network availability and Optimum subscription).
|
|
|
Energy trading
|
On-grid only
|
|
|
EV charger
|
Yes
|
|
